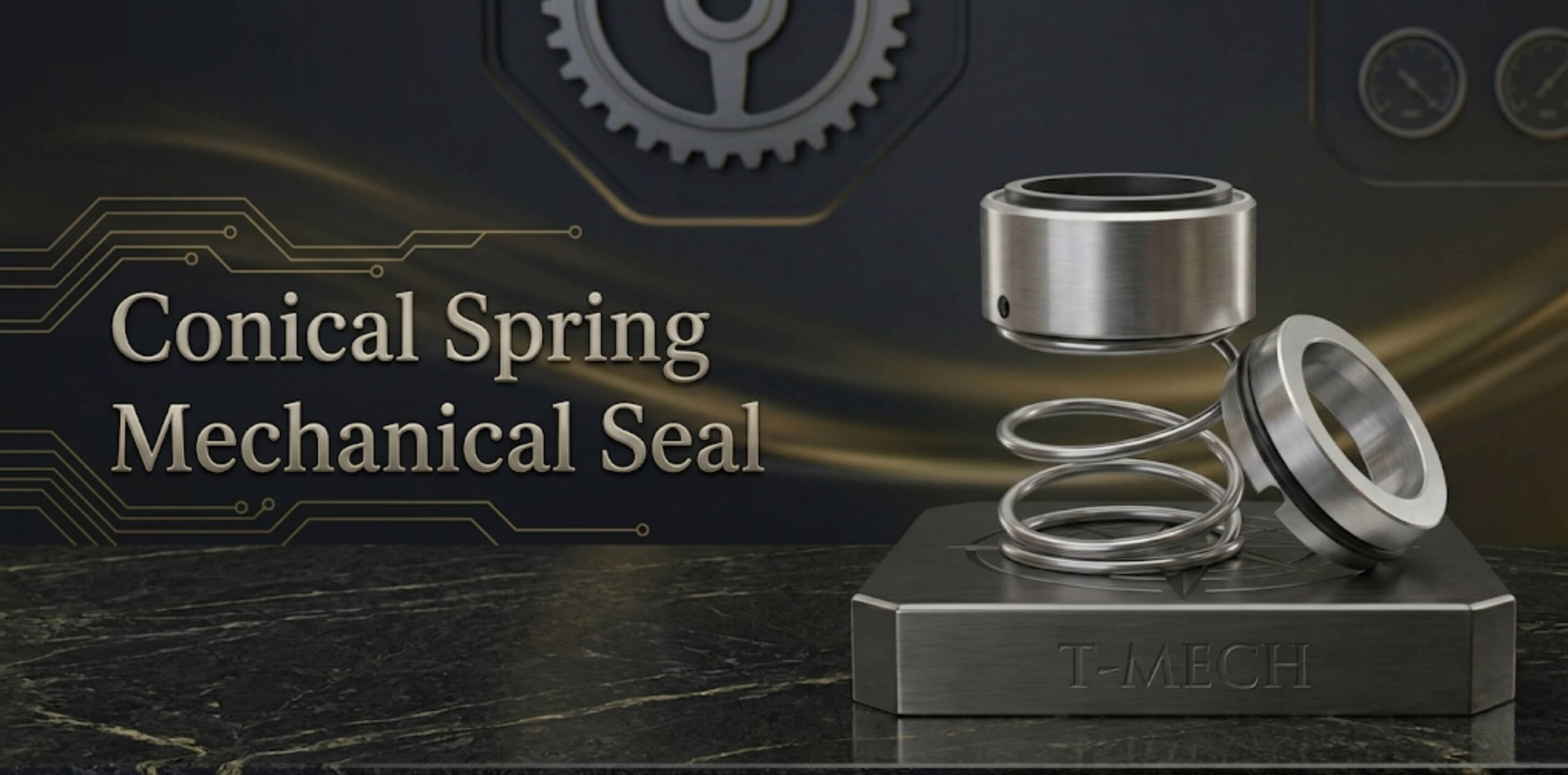

The type CONS_88 is a single conical helical spring unbalanced seal with 'o' ring as secondary element Can be attend for wide services.
APPLICATION
Water Chemical Process.Dary & Pharmaceuticals
FACE MATERIALS
Tungsten Carbide, Carbon, Silicon Carbide, Ceramic, Special Cast.
SECONDARY SEAL FACE MATERIALS
Viton, PTFE, Neoprene, Silicon
METAL COMPONENT
SS 316, Hastelloy
OPERATING LIMITS
- PRESSURE : 10 bar
- TEMPERATURE : 20°c to +220°c
- SPEED : 4500 RPM (max)
