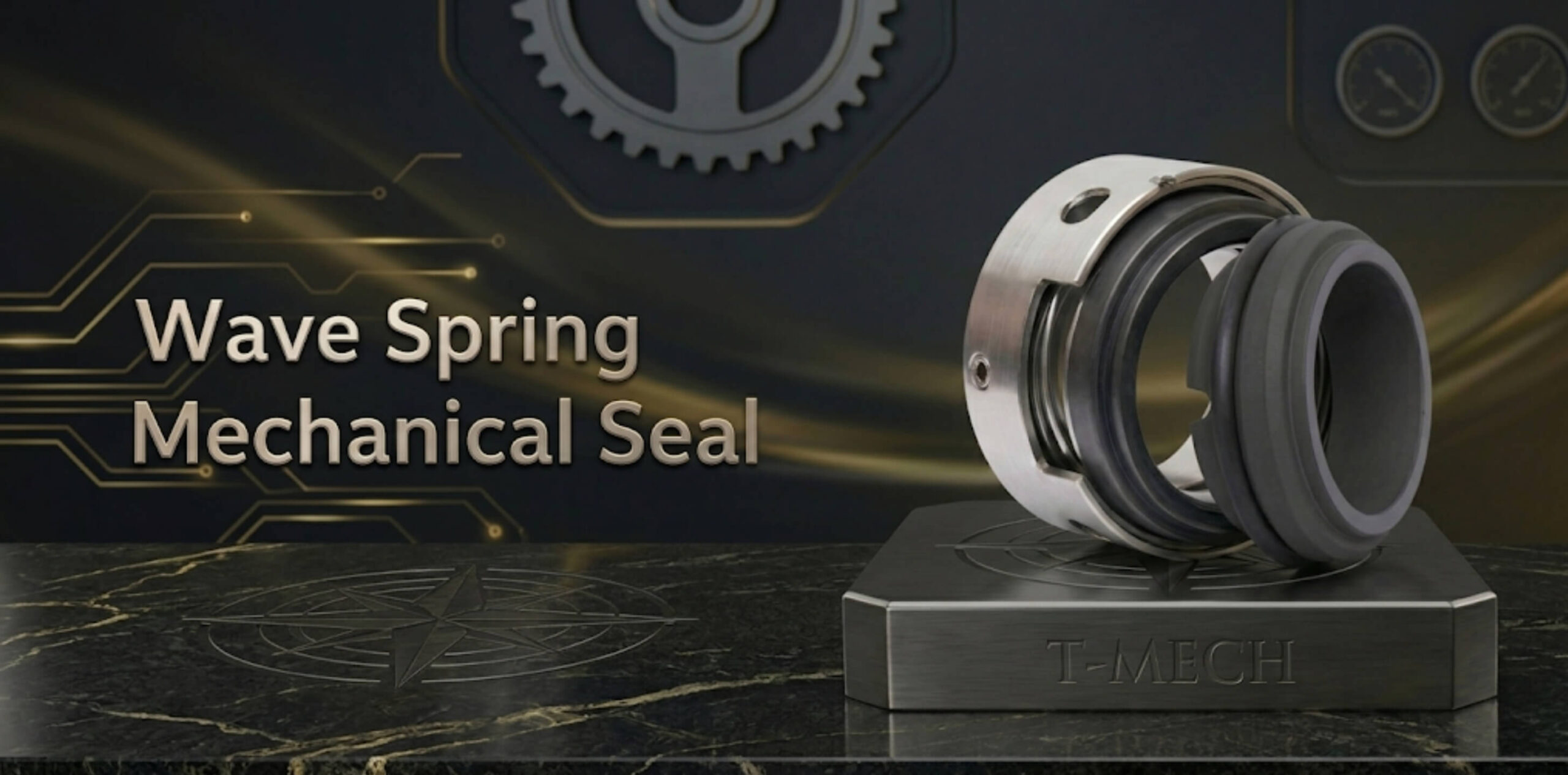

The type WSP_90 are single wave spring seals suitable for most application these seal can also be used in Dirty applicacion as sprine clogging does noc cakes place
APPLICATION
Paper & Pulp Industries, Sugar, Waste Water & Dairy
FACE MATERIALS
Tungsten Carbide, Carbon, Silicon Carbide Ceramic. Special Cast.
SECONDARY SEAL FACE MATERIALS
Viton, PTFE, Nirile, Neoprene
METAL COMPONENT
SS 316, SS 304
OPERATING LIMITS
- PRESSURE : 10 bar
- TEMPERATURE : 30°c to 220°c
- SPEED : 4500 RPM (max)
